Automatic Feeding Corrugated Carton Box Machine Packaging Solution

Automatic Feeding Corrugated Carton Box Machine Packaging Solution
Automatic Feeding Corrugated Carton Box Machine Packaging Solution Automatic Feeding Corrugated Carton Box Machine Packaging Solution Automatic Feeding Corrugated Carton Box Machine Packaging Solution

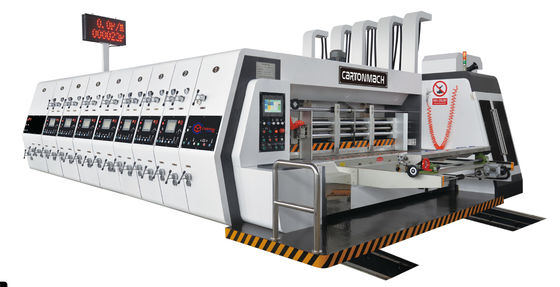

Gambar besar :  Automatic Feeding Corrugated Carton Box Machine Packaging Solution

Detail produk:
Place of Origin: china
Nama merek: Hh
Model Number: 1226
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Kemasan rincian: Plastik
Waktu pengiriman: 5-8 Hari
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 60 set setiap bulan
Kontak

Automatic Feeding Corrugated Carton Box Machine Packaging Solution

Deskripsi
Metode pemberian makan: Makan otomatis Sistem Pengendalian: PLC
Berat mesin: 3000kg Kondisi: Baru
Struktur: desain baru Ketebalan Kertas: 2-12mm
Ketebalan: 2-10mm
Menyoroti:

Automatic corrugated carton box machine

,

Carton box packaging solution

,

Corrugated box machine with feeding

Automatic Feeding Corrugated Carton Box Machine Packaging Solution
Equipment Characteristics
  • Designed and manufactured to meet high standards of reliability and safety
  • Constructed with high-quality materials and premium components
  • Hardened transmission gears with grinding process (Hardness ≥ 600)
  • All gaps adjusted via computer or electric controls
  • Full printing process with vacuum adsorption transfer
  • Keyless connection ring reduces center wear and maintains long-term printing accuracy
  • Computer-controlled stock ordering with quick changeover and easy operation
  • All transmission rollers made from excellent steel with hard chrome surface grinding
  • Wall body constructed from high-quality steel with internal stress treatment and CNC machining
  • Integrated warning bell system for enhanced worker safety during operation
  • Emergency stop switches on each unit for internal movement control and operator protection
  • Automatic lubricating oil balancing device maintains consistent oil levels across all units
  • Computer control system stores up to 999 production orders
Technical Specifications

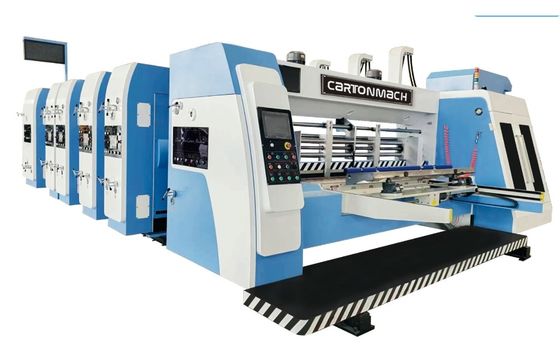

RG618 HIGH SPEED 4 COLOR PRINTING CREASING SLOTTER DIE CUTTER MACHINE
Model RG618
Max Mechanical Speed (pieces/min) 450
24 Hours Normal Production Speed (pcs/min) 400
Max Feeding Size (mm) 600 × 1800
Min Feeding Size (mm) 200 × 500
Skip Feeding Size (mm) 800 × 1800
Max Printing Size (mm) 600 × 1760
Thickness of Standard Printing Plate 7.2mm
Feeding Precision (mm) ±1.0mm
Register Precision (mm) ±0.5mm
Die-cutting Precision (mm) ±1mm
Slotting Precision (mm) ±1.5mm
Min. Slotting Distance (mm) Positive knife: 115×115×115×115
Negative knife: 180×90×180×90
Thickness of Cardboard (mm) 2-8mm
Main Motor Power 45 kW

Label:

Mesin Pencetak Slitter Blade Tipis,

Mesin Slotting Partisi PLC,

Mesin Kotak Karton Bergelombang Slotting Partisi
