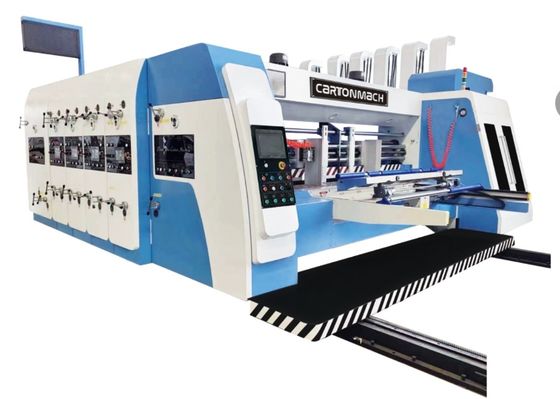

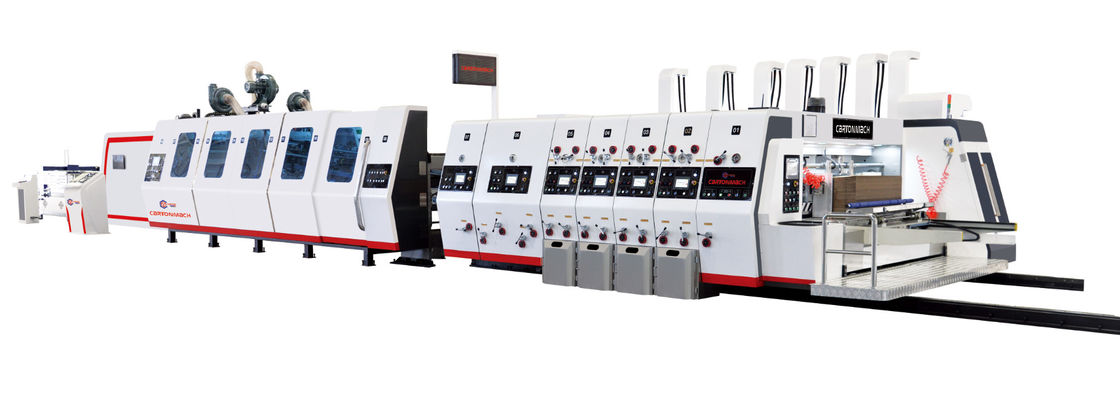

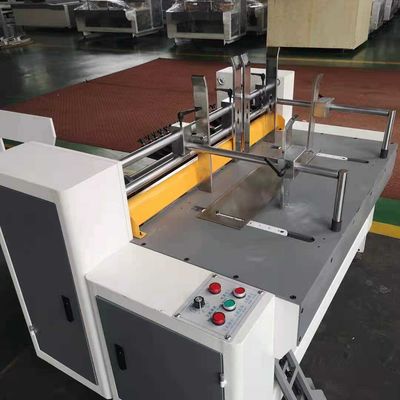

Corrugated Automatic Feeding Machinery Large Scale Packaging Operations

Corrugated Automatic Feeding Machinery Large Scale Packaging Operations
Corrugated Automatic Feeding Machinery Large Scale Packaging Operations Corrugated Automatic Feeding Machinery Large Scale Packaging Operations Corrugated Automatic Feeding Machinery Large Scale Packaging Operations

Gambar besar :  Corrugated Automatic Feeding Machinery Large Scale Packaging Operations

Detail produk:
Place of Origin: china
Nama merek: Hh
Sertifikasi: CE ISO
Model Number: 1226
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: Negotiated
Kemasan rincian: Plastik
Waktu pengiriman: 5-8 Hari
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 60 set setiap bulan
Kontak

Corrugated Automatic Feeding Machinery Large Scale Packaging Operations

Deskripsi
Diameter silinder: 430mm Tes mesin: Asalkan
Aplikasi: Kotak Karton Bergelombang Ketebalan: 2-10mm
Bahan: Karton bergelombang Nama Produk: Mesin Kotak Karton Bergelombang
Sistem Pengendalian: PLC Metode pemberian makan: Makan otomatis
Menyoroti:

corrugated automatic feeding machinery

,

large scale packaging machinery

,

corrugated carton box machine

Corrugated Automatic Feeding Machinery for Large Scale Packaging Operations
Technical Specifications
Model QD-ZYKM1224
Max Machine Speed (Roller Feeder Pcs/min) 220
Common Spending Max 1200*2450
Min. Paper Feeding Size (mm) 320×600
Max. Printing Area (mm) 1200x2400
Printing Plate Thickness (mm) 7.2
Machine Wall Thickness 65mm
Printing Accuracy (mm) ≤±0.4
Print Roller Diameter (mm) 408
Slot Knives Width (mm) 7.5mm
Die Cutting Accuracy (mm) ±1.0
Premium Components & Materials
No. Component Specification
1 Machine Wall Thickness 60mm
2 Touch Screen PLC, touch screen from France Schneider
3 Converter France Schneider
4 Bearings HRB
5 Gears GRIDING TYPE
6 Electrical Elements SCHNEIDER France
7 Frequency Converter TaiWan Delta
8 Doctor Blade Guangdong
9 Ceramic Anilox Cylinder Shangyun (Grade A Quality)
10 Anilox Roll JingHui (Grade A quality)
CE Certified - Featuring reliable functions and enhanced safety standards
Key Features & Benefits
  • Automatic Control System - Full computer control system with production order storage on slot unit
  • Easy Operation - Fast order changes and simple operation interface
  • Premium Transmission - All transmission rollers made of top quality steel with dynamic/static balance tests, chrome plating and polishing
  • High-Quality Gears - Hardened and ground gears with >60° Rockwell hardness
  • Safety Features - Each unit can be released automatically or separately with electric shifting and pneumatic locking
  • Emergency Protection - Emergency switches installed in every unit for operator safety
  • Advanced Monitoring - Digital screen displays machine printing speed for easy monitoring
  • Reliable Components - Transmission gear box with oil level connector and central duster system
